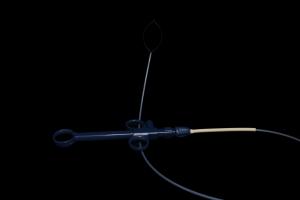

Medical Devices Sterilized Flexible Polypectomy Snare Instrument CE Approval
Intended use:
Used with endoscopes to capture and remove gastrointestinal tissue
Features:
1. The opening and closing mechanism of the tooth mouth achieves the best ease of use
2. Provide 5 different ring sizes to effectively remove polyps of all sizes

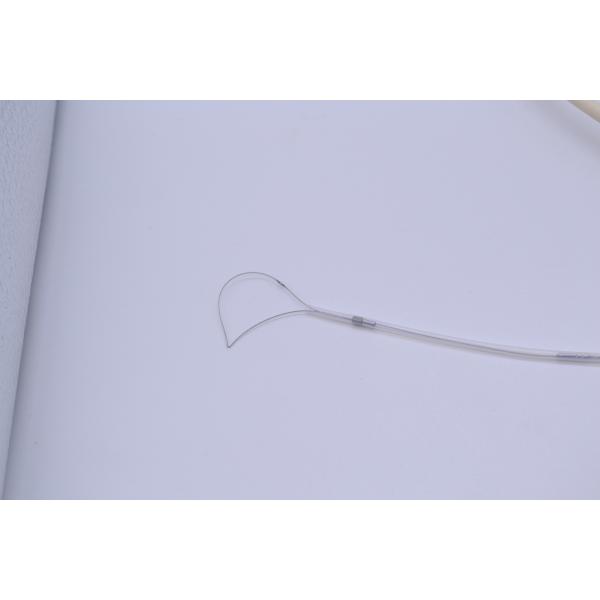

3. Ellipse, hexagon and crescent shape are available
4. Integrated handle gauge allows you to estimate the size of the captured polyp
5. Smooth sheath can prevent damage to intestinal wall, esophagus and other tissues
Specifications:
| Model | Sheath O.D.
(mm) | Channel O.D.
(mm) | Working Length
(mm) | Loop width
(mm) | Loop Shape |
| SD-28N-15A | 2.3 | ≥2.8 | 1800 | 15 | Hexagon |
| SD-28N-20A | 2.3 | ≥2.8 | 1800 | 20 |
| SD-28N-25A | 2.3 | ≥2.8 | 1800 | 25 |
| SD-28N-30A | 2.3 | ≥2.8 | 1800 | 30 |
| SD-28U-15A | 2.3 | ≥2.8 | 2300 | 15 |
| SD-28U-20A | 2.3 | ≥2.8 | 2300 | 20 |
| SD-28U-25A | 2.3 | ≥2.8 | 2300 | 25 |
| SD-28U-30A | 2.3 | ≥2.8 | 2300 | 30 |
| SD-20N-15B | 1.8 | ≥2.0 | 1800 | 15 | Oval |
| SD-20N-20B | 1.8 | ≥2.0 | 1800 | 20 |
| SD-20N-25B | 1.8 | ≥2.0 | 1800 | 25 |
| SD-20U-15B | 1.8 | ≥2.0 | 2300 | 15 |
| SD-20U-20B | 1.8 | ≥2.0 | 2300 | 20 |
| SD-20U-25B | 1.8 | ≥2.0 | 2300 | 25 |
| SD-28N-15B | 2.3 | ≥2.8 | 1800 | 15 |
| SD-28N-25B | 2.3 | ≥2.8 | 1800 | 25 |
| SD-28N-30B | 2.3 | ≥2.8 | 1800 | 30 |
| SD-28N-35B | 2.3 | ≥2.8 | 1800 | 35 |
| SD-28U-15B | 2.3 | ≥2.8 | 2300 | 15 |
| SD-28U-25B | 2.3 | ≥2.8 | 2300 | 25 |
| SD-28U-30B | 2.3 | ≥2.8 | 2300 | 30 |
| SD-28U-35B | 2.3 | ≥2.8 | 2300 | 35 |
| SD-28N-15C | 2.3 | ≥2.8 | 1800 | 15 | Crescent |
| SD-28N-20C | 2.3 | ≥2.8 | 1800 | 20 |
| SD-28N-25C | 2.3 | ≥2.8 | 1800 | 25 |
| SD-28U-15C | 2.3 | ≥2.8 | 2300 | 15 |
| SD-28U-20C | 2.3 | ≥2.8 | 2300 | 20 |
| SD-28U-25C | 2.3 | ≥2.8 | 2300 | 25 |
Packing & Delivery:
Packing: Dupont bag sterilized packaging, two layers plastic sealing, foam paper and box packaging.
Lead time: The goods in stock can be shipped within 7 days, while the goods for OEM or ODM services need about 30 working days to be shipped after receiving 100% prepayment.
Why Choose Us
Jiangsu Changmei Medtech Co., Ltd. is mainly engaged in medical equipment products and production equipment design and development and manufacturing, in particular focus on the medical balloon catheter market, the company in the innovative balloon technology, production equipment and integrated manufacturing field closely follow the trend of the world, is committed to the medical balloon catheter in the case of domestic.
-
With a modern standard workshop of 6000m2,among which,1600m2 are class 100000 clean rooms in compliance with YY0033;
-
National class II and class III medical device production license;
-
EN ISO 13485:2012 authentication certificate by TÜV SÜD;
-
With numerous patents, Jiangsu Province Science and Technology of private enterprises;
-
Experienced in interventional and endoscope equipment research and development of minimally invasive diagnosis and treatment;
-
Our products have been in service for improving patients’ quality of life all over the world.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer located in Changzhou Jiangsu China,which could supply OEM and ODM services.
Q: How long is your delivery time ?
A: Generally it is 7 working days if the goods are in stock. Or it is 30-60 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample but for the extra price.
Q: What is your terms of payment ?
A: T/T. If you have any question, Please contact with us.
